Graphite Electrode


Graphite Electrode RP HP UHP

Place of Origin:


Supply Ability:



Port of Loading:


Payment Terms:

T/T, L/C, D/P

Introduction Products:


Graphite electrode mainly petroleum coke, needle coke as raw material, coal asphalt binder, calcination, ingredients, kneading, molding, baking and graphitization, machining and made, which is released in electric arc furnace in the form of arc conductor of electricity to heat melting furnace charge, according to its quality index, can be divided into ordinary power graphite electrode, high power graphite electrode and ultra high power graphite electrode.

The main raw material of graphite electrode production is petroleum coke. A small amount of asphalt coke can be added to common power graphite electrode, and the sulfur content of petroleum coke and asphalt coke cannot exceed 0.5%.Needle coke is also needed to produce high power or ultra high power graphite electrodes.


The graphite electrode for steel - making accounts for 70% ~ 80% of the total amount of graphite electrode.In eaf steelmaking, the graphite electrode is used to introduce current into the furnace, and the high temperature heat source generated by arcing between the electrode and charge is used for smelting.

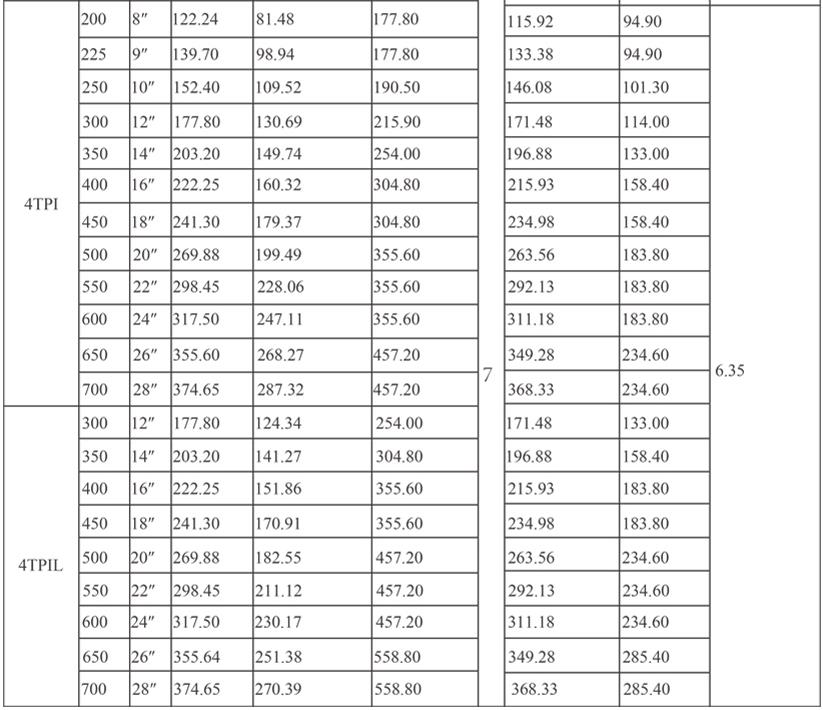

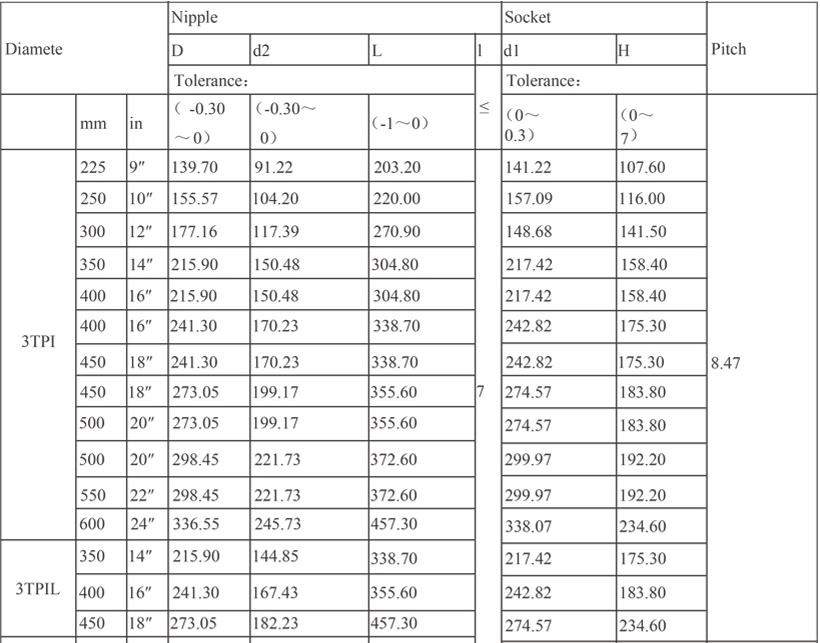

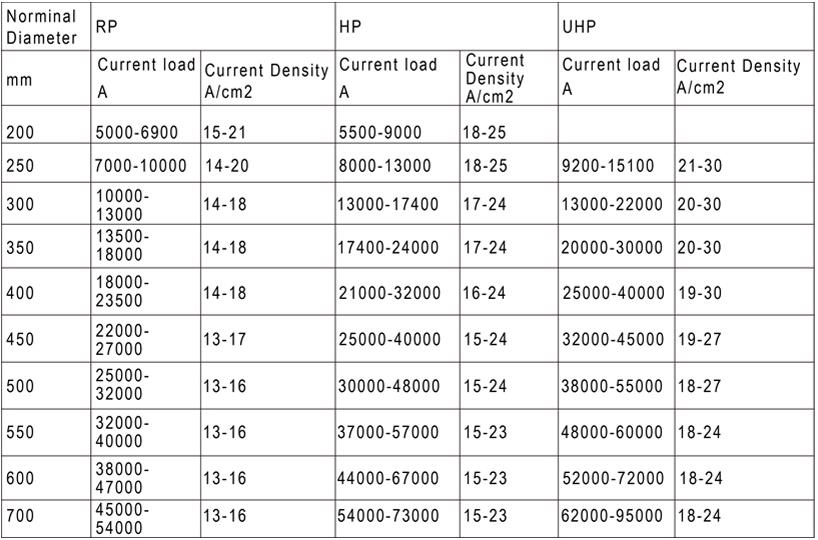

3. Specification:
